EMT Practice Test

1. Question Content...

---

Question1: The LTM Specialist is in the process of creating a USB boot drive for the purpose of restoring the BIG-IP software to an LTM device. A separate LTM device has been selected for the purpose of creating the USB boot drive. The BIG-IP software ISO has already been uploaded and mounted on the separate LTM device.
Which command should the LTM Specialist use to trigger the LTM device to install the BIGIP software to the USB boot drive?

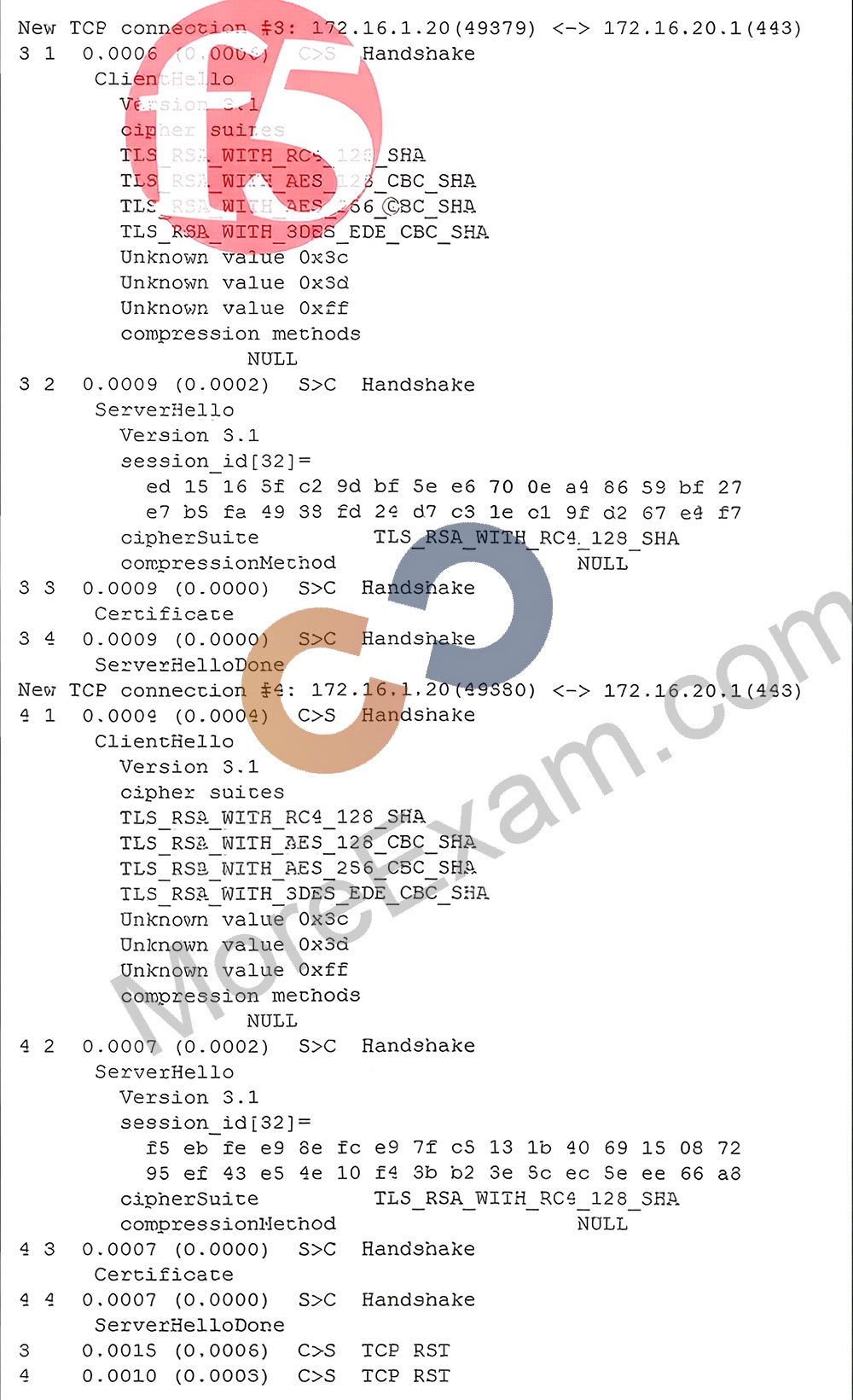

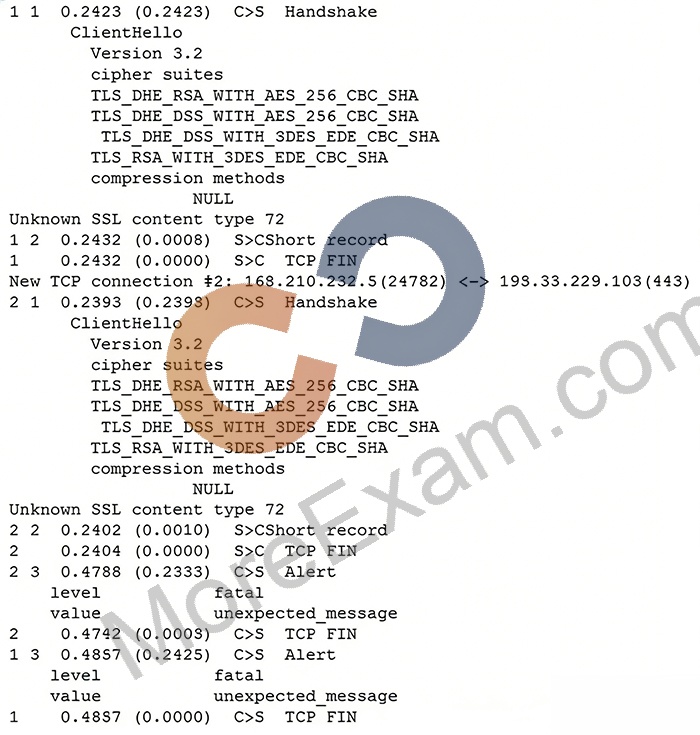

Question2: -- Exhibit- -- Exhibit -Refer to the exhibit. A client attempts to connect from a Google Chrome browser to a virtual server on a BIG-IP

LTM. The virtual server is SSL Offloaded. When the client connects, the client receives an SSL error. After trying Mozilla Firefox and Internet Explorer browsers, the client still receives the same errors.
The LTM Specialist does an ssldump on the virtual server and receives the results as per the exhibit.
What is the problem?

Question3: -- Exhibit -

-- Exhibit -Refer to the exhibit. Users receive an error when attempting to connect to the website https://website.com. The
website has a DNS record of 195.56.67.90. The upstream ISP has confirmed that there is nothing
wrong with the routing between the user and the LTM device.
The following tcpdump outputs have been captured:
External Vlan, filtered on IP 168.210.232.5
00:25:07.598519 IP 168.210.232.5.33159 > 195.56.67.90.https: S 1920647964:1920647964(0) win 8192 <mss 1450,nop,nop,sackOK>
00:25:07.598537 IP 195.56.67.90.https > 168.210.232.5.33159: S 2690691360:2690691360(0) ack 1920647965 win 4350 <mss 1460,sackOK,eol>
00:25:07.598851 IP 168.210.232.5.33160 > 195.56.67.90.https: S 2763858764:2763858764(0) win 8192 <mss 1450,nop,nop,sackOK>
00:25:07.598858 IP 195.56.67.90.https > 168.210.232.5.33160: S 1905576176:1905576176(0) ack 2763858765 win 4350 <mss 1460,sackOK,eol>
Internal Vlan, filtered on IP 168.210.232.5
00:31:46.171124 IP 168.210.232.5.33202 > 192.168.100.20.http: S 2389057240:2389057240(0) win 4380 <mss 1460,nop,wscale 0,sackOK,eol>
What is the problem?

Question4: An LTM Specialist troubleshooting an issue looks at the following /var/log/ltm entries:
Oct 2 04:52:42 slot1/tmm7 crit tmm7[21734]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 05:37:16 slot1/tmm7 crit tmm7[21734]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 05:57:32 slot1/tmm2 crit tmm2[21729]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 06:30:03 slot1/tmm7 crit tmm7[21734]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 06:37:44 slot1/tmm2 crit tmm2[21729]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 06:47:05 slot1/tmm5 crit tmm5[21732]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Which configuration item should the LTM Specialist review to fix the issue?

Question5: Which file should be modified to create custom SNMP alerts?

Question6: What is the effect of an iRule error such as referencing an undefined variable?

Question7: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is investigating reports that users are unable to perform some commands through an FTP virtual server. The LTM Specialist performs a capture on the server side of the LTM device.
What is the issue with the application?

Question8: An LTM Specialist is investigating reports from users that SSH connections are being terminated unexpectedly. SSH connections are load balanced through a virtual server. The users experiencing this problem are running SQL queries that take upwards of 15 minutes to return with no screen output. The virtual server is standard with a pool associated and no other customizations.
What is causing the SSH connections to terminate?

Question9: An IT administrator wants to log which server is being load balanced to by a user with IP address
10.10.10.25.
Which iRule should the LTM Specialist use to fulfill the request?

Question10: There is a fault with an LTM device load balanced trading application that resides on directly connected VLAN vlan-301. The application virtual server is 10.0.0.1:80 with trading application backend servers on subnet
192.168.0.0/25. The LTM Specialist wants to save a packet capture with complete payload for external analysis.
Which command should the LTM Specialist execute on the LTM device command line interface?

Question11: An IT administrator wants to log which server is being load balanced to by a user with IP address 10.10.10.25.
Which iRule should the LTM Specialist use to fulfill the request?

Question12: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is troubleshooting a virtual server. Both the virtual server and the pool are showing blue squares for their statuses, and new clients report receiving "The connection was reset" through their browsers. Connections directly to the pool member are successful.
What is the issue?

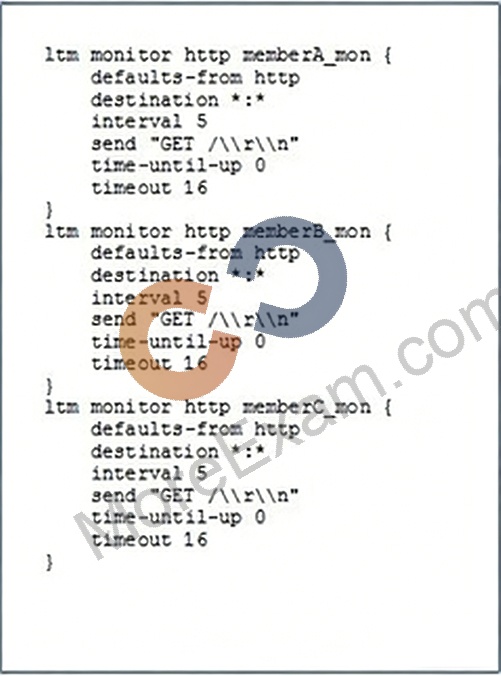

Question13: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A server administrator notices that one server is intermittently NOT being sent any HTTP requests. The server logs display no issues. The LTM Specialist notices log entries stating the node (172.16.20.1) status cycling between down and up. The pool associated with the virtual server (10.10.1.100) has a custom HTTP monitor applied.
Which tcpdump filter will help trace the monitor?

Question14: An LTM device is load balancing telnet and ssh applications in a client/server environment experiencing significant packet delay.
Which setting in the TCP profile should reduce the amount of packet delay?

Question15: An LTM Specialist is troubleshooting a problem on an eCommerce website. The user browses the online store using port 80, adding items to the shopping cart. The user then clicks the "Checkout" button on the site, which redirects the user to port 443 for the checkout process. Suddenly, the user's shopping cart is shown as empty. The shopping cart data is stored in memory on the server, and the default source address persistence profile is used on both virtual servers.
How should the LTM Specialist resolve this issue?

Question16: A high-availability (HA) pair configuration uses only the hardwire serial cable connection to determine device state. A power outage occurs to the PDU powering the active unit. The standby unit takes over the active role as expected.
How is the peer unit able to determine the active unit is unavailable?

Question17: -- Exhibit - -- Exhibit -


Refer to the exhibits.
Which URL on which server is causing the highest latency for users?

Question18: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
Users receive an error when attempting to connect to the website https://website.com. The website has a DNS record of 195.56.67.90. The upstream ISP has confirmed that there is nothing wrong with the routing between the user and the LTM device.
The following tcpdump outputs have been captured:
External Vlan, filtered on IP 168.210.232.5
00:25:07.598519 IP 168.210.232.5.33159 > 195.56.67.90.https: S 1920647964:1920647964(0) win 8192 <mss
1450,nop,nop,sackOK>
00:25:07.598537 IP 195.56.67.90.https > 168.210.232.5.33159: S 2690691360:2690691360(0) ack
1920647965 win 4350 <mss 1460,sackOK,eol>
00:25:07.598851 IP 168.210.232.5.33160 > 195.56.67.90.https: S 2763858764:2763858764(0) win 8192 <mss
1450,nop,nop,sackOK>
00:25:07.598858 IP 195.56.67.90.https > 168.210.232.5.33160: S 1905576176:1905576176(0) ack
2763858765 win 4350 <mss 1460,sackOK,eol>
Internal Vlan, filtered on IP 168.210.232.5
00:31:46.171124 IP 168.210.232.5.33202 > 192.168.100.20.http: S 2389057240:2389057240(0) win 4380
<mss 1460,nop,wscale 0,sackOK,eol>
What is the problem?

Question19: An LTM Specialist has installed a hotfix that updated the SCCP firmware package.
Which command will ensure that the host subsystem and SCCP reboot?

Question20: An LTM Specialist notices the following error on the stdout console:
mcpd[2395]: 01070608:0: License is not operational(expired or digital signature does not match contents)
Which command should be executed to verify the LTM device license?

Question21: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A web application is configured to allow sessions to continue even after a user computer is shut down for the night. A new LTM device is configured to load balance the web application to several servers. The application owner reports that application users are logged out of the web application whenever their browser is restarted or computer is rebooted.
What is the problem?

Question22: An LTM device has been configured to log the reasons for generating TCP RST packets.
The following log entry occurs:
"01230140:3: RST sent from 192.168.1.100:80 to 192.168.1.124:39272, [0x112d82a:1721] {peer} TCP RST from remote system." Which condition will trigger this log entry?

Question23: An application is configured on an LTM device:
Virtual server: 10.0.0.1:80 (VLAN vlan301)
SNAT IP: 10.0.0.1
Pool members: 10.0.1.1:8080, 10.0.1.2:8080, 10.0.1.3:8080 (VLAN vlan302)
Which packet capture should the LTM Specialist perform on the LTM device command line interface to capture only server traffic specifically for this application?

Question24: -- Exhibit -

-- Exhibit --
Refer to the exhibits.
An LTM Specialist configures a virtual server for an internal application to perform client-side encryption while allowing the server-side traffic to be unencrypted. Application users report that images are NOT loading through the virtual server; however, images load when going directly to the server.
What should the LTM Specialist configure to allow the images to load through the virtual server?

Question25: An LTM Specialist configures a new HTTP virtual server on an LTM device external VLAN. The web servers are connected to the LTM device internal VLAN. Clients trying to connect to the virtual server are unable to establish a connection. A packet capture shows an HTTP response from a web server to the client and then a reset from the client to the web server.
From which two locations could the packet capture have been collected? (Choose two.)

Question26: A stand-alone LTM device is to be paired with a second LTM device to create an active/standby pair. The current stand-alone LTM device is in production and has several VLANs with floating IP addresses configured. The appropriate device service clustering (DSC) configurations are in place on both LTM devices.
Which two non-specific DSC settings should the LTM Specialist configure on the second LTM device to ensure no errors are reported when attempting to synchronize for the first time? (Choose two.)

Question27: Given a tcpdump on an LTM device from both sides of a connection on the External and Internal VLANs, how should an LTM Specialist determine if SNAT is enabled for a particular pool?

Question28: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
The virtual server is listening on port 443.
What is the solution to the problem?

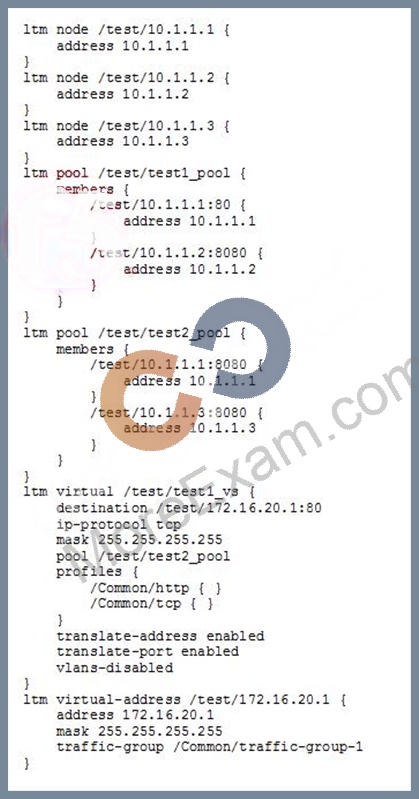

Question29: -- Exhibit - -- Exhibit -Refer to the exhibit.

An LTM Specialist is reviewing the 'test' partition.
Which objects, in order, can be removed from the partition?

Question30: A virtual server for a set of web services is constructed on an LTM device. The LTM Specialist has created an iRule and applied this iRule to the virtual server:
when HTTP_REQUEST {
switch [HTTP::uri] {
"/WS1/ws.jsp" {
log local0. "[HTTP::uri]-Redirected to JSP Pool"
pool JSP
}
default { log local0. "[HTTP::uri]-Redirected to Non-JSP Pool"
pool NonJSP
} } }
However, the iRule is NOT behaving as expected. Below is a snapshot of the log:
/WS1/ws.jsp-Redirected to JSP Pool /WS1/ws.jsp-Redirected to JSP Pool /WS1/ws.jsp-Redirected to JSP Pool /WS1/WS.jsp-Redirected to Non-JSP Pool /ws1/WS.jsp-Redirected to Non-JSP Pool /WS1/ws.jsp-Redirected to JSP Pool /ws1/ws.jsp-Redirected to Non-JSP Pool
What is the problem?

Question31: -- Exhibit - -- Exhibit -


Refer to the exhibits.
A customer requests to offload SSL for an internal website. The front page of the website loads correctly; however, selecting links on the page fails.
How should the LTM Specialist fix the issue?

Question32: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist has uploaded a qkview to F5 iHealth.
Within the GUI, what is the correct procedure to comply with the recommendation shown in the exhibit?

Question33: An LTM Specialist has a OneConnect profile and HTTP profile configured on a virtual server to load balance an HTTP application.
The following HTTP headers are seen in a network trace when a client connects to the virtual server:
Clientside:
GET / HTTP/1.1
Host: 192.168.136.100
User-Agent: Mozilla/5.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-EncodinG. gzip, deflate
Connection: keep-alive
Serverside:
HTTP/1.1 200 OK
DatE. 5 Jun 1989 17:06:55 GMT
Server: Apache/2.2.14 (Ubuntu)
Vary: Accept-Encoding
Content-EncodinG. gzip
Content-LengtH. 3729
X-Cnection: close
Content-TypE. text/html
The LTM Specialist notices the OneConnect feature is working incorrectly.
Why is OneConnect functioning incorrectly?

Question34: What does the following iRule do?
when CLIENT_ACCEPTED {
if { [matchclass [IP::client_addr] equals WebClient1-Whitelist1] }{
#log local0. "Valid client IP: [IP::client_addr] - forwarding traffic"
#Pool WebClient1
} else {
log local0. "Invalid client IP: [IP::client_addr] - discarding"
discard
}
}

Question35: -- Exhibit -


-- Exhibit -
Refer to the exhibits.
How should the LTM Specialist minimize the configuration?

Question36: -- Exhibit --

-- Exhibit --
Refer to the exhibit.
A company uses a complex piece of client software that connects to one or more virtual servers (VS) hosted on an LTM device. The client software is experiencing issues. An LTM Specialist must determine the cause of the problem. The LTM Specialist has the tcpdump extract. The client loses connection with the LTM device.
Where is the reset originating?

Question37: -- Exhibit - -- Exhibit -

Refer to the exhibit.
A server administrator notices that one server is intermittently NOT being sent any HTTP requests. The server logs display no issues. The LTM Specialist notices log entries stating the node
(172.16.20.1) status cycling between down and up. The pool associated with the virtual server
(10.10.1.100) has a custom HTTP monitor applied.
Which tcpdump filter will help trace the monitor?

Question38: Internet clients connecting to a virtual server to download a file are experiencing about 150 ms of latency and no packet loss.
Which built-in client-side TCP profile provides the highest throughput?

Question39: An LTM Specialist is troubleshooting a problem on an eCommerce website. The user browses the online store using port 80, adding items to the shopping cart. The user then clicks the "Checkout" button on the site, which redirects the user to port 443 for the checkout process. Suddenly, the user's shopping cart is shown as empty. The shopping cart data is stored in memory on the server, and the default source address persistence profile is used on both virtual servers.
How should the LTM Specialist resolve this issue?

Question40: A BIG-IP Operator has made a grave error and deleted a few virtual servers on the active LTM device fronting the web browsing proxies. The BIG-IP Operator has NOT yet performed a configuration sync.
Which command should the LTM Specialist execute on the active LTM device to force a failover to the standby node and restore web browsing?

Question41: Users are experiencing low throughput when downloading large files over a high-speed WAN connection.
Extensive packet loss was found to be an issue but CANNOT be eliminated.
Which two TCP profile settings should be modified to compensate for the packet loss in the network?
(Choose two.)

Question42: An LTM Specialist configured a virtual server to load balance a custom application. The application works when it is tested from within the firewall but it fails when tested externally. The pool member address is 192.168.200.10:80. A capture from an external client shows:
GET /index.jsp HTTP/1.1 Host: 207.206.201.100 User-Agent: Mozilla/5.0 (Windows NT 6.1; WOW64; rv:15.0) Gecko/20100101
Firefox/15.0.1 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Connection: keep-alive HTTP/1.1 302 Found DatE.Wed, 17 Oct 2012 23:09:55 GMT Server: Apache/2.2.15 (CentOS) Location: http://192.168.200.10/user/home.jsp Content-LengtH.304 Connection: close
What is the solution to this issue?

Question43: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A server administrator notices that one server is intermittently NOT being sent any HTTP requests. The server logs display no issues. The LTM Specialist notices log entries stating the node (172.16.20.1) status cycling between down and up. The pool associated with the virtual server (10.10.1.100) has a custom HTTP monitor applied.
Which tcpdump filter will help trace the monitor?

Question44: There are three servers in the pool: 172.16.20.1, 172.16.20.2, and 172.16.20.3, with the virtual IP address 10.0.20.88.
A user CANNOT connect to an HTTP application. To understand the problem and find a solution, the LTM Specialist runs two concurrent traces on the LTM device, with the following results:
Trace on client side:
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on 0.0, link-type EN10MB (Ethernet), capture size 96 bytes
22:22:07.423759 IP 172.16.20.100.53875 > 10.0.20.88.80: S 998346084:998346084(0) win 5840
<mss 1460,sackOK,timestamp 67942058 0,nop,wscale 4>
22:22:07.424056 IP 10.0.20.88.80 > 172.16.20.100.53875: S 4671780:4671780(0) ack
998346085 win 4380 <mss 1460,nop,wscale 0,nop,nop,timestamp 2392362490 67942058,sackOK,eol> 22:22:07.424776 IP 172.16.20.100.53875 > 10.0.20.88.80: . ack 1 win 365 <nop,nop,timestamp
67942058 2392362490>
22:22:07.424790 IP 172.16.20.100.53875 > 10.0.20.88.80: P 1:149(148) ack 1 win 365 <nop,nop,timestamp 67942058 2392362490> 22:22:07.424891 IP 10.0.20.88.80 > 172.16.20.100.53875: . ack 149 win 4528
<nop,nop,timestamp 2392362491 67942058>
22:22:12.024850 IP 10.0.20.88.80 > 172.16.20.100.53875: R 1:1(0) ack 149 win 4528
6 packets captured
6 packets received by filter
0 packets dropped by kernel
Trace on server side:
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on internal, link-type EN10MB (Ethernet), capture size 96 bytes
22:22:07.424881 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380 <mss 1460,nop,wscale 0,nop,nop,timestamp 2392362491 0,sackOK,eol>
22:22:08.424893 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380 <mss 1460,nop,wscale 0,nop,nop,timestamp 2392363491 0,sackOK,eol>
22:22:09.625082 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380 <mss 1460,nop,wscale 0,nop,nop,timestamp 2392364691 0,sackOK,eol>
22:22:10.825194 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380 <mss 1460,sackOK,eol>
4 packets captured 4 packets received by filter 0 packets dropped by kernel
What should the LTM Specialist do to solve the problem?

Question45: An LTM Specialist is troubleshooting an HTTP monitor. The pool member is accessible directly through a browser, but the HTTP monitor is marking the pool member as down.
GET / HTTP/1.1
HTTP/1.1 400 Bad Request
DatE. Tue, 23 Oct 2012 21:39:07 GTM
Server: Apache/2.2.22 (FreeBSD) PHP/5.4.4
mod_ssl/2.2.22 OpenSSL/0.9.8q DAV/2
Content-LengtH. 226
Connection: close
Content-TypE. text/html; charset=iso-8859-1
Which issue is the pool member having?

Question46: An LTM Specialist loads a UCS file generated on a different LTM device and receives the following error message:
"mcpd[2395]: 01070608:0: License is not operational (expired or digital signature does not match contents)" Which command should the LTM Specialist use to prevent the error?

Question47: -- Exhibit- -- Exhibit -

Refer to the exhibit.
An LTM Specialist is troubleshooting a virtual server. Both the virtual server and the pool are showing blue squares for their statuses, and new clients report receiving "The connection was reset" through their browsers. Connections directly to the pool member are successful.
What is the issue?

Question48: An application is configured on an LTM device:
Virtual server: 10.0.0.1:80 (VLAN vlan301)
SNAT IP: 10.0.0.1
Pool members: 10.0.1.1:8080, 10.0.1.2:8080, 10.0.1.3:8080 (VLAN vlan302)
Which packet capture should the LTM Specialist perform on the LTM device command line interface to capture only client traffic specifically for this virtual server?

Question49: -- Exhibit-

-- Exhibit -
Refer to the exhibit.
A pair of LTM devices are configured for HA. The LTM Specialist observes from a capture that there is a successful connection from a client directly to a web server and an unsuccessful connection from a client via the LTM device to the same web server.
Which two solutions will solve the configuration problem? (Choose two.)

Question50: An LTM Specialist uploaded new releases .iso and .md5 files titled "BIGIP-FILENAME" via the GUI.
Which commands are run via the command line from the root directory to verify the integrity of the new .iso file?

Question51: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM device is used to load balance web content over a secure channel.
The developers of the web content have done a trace using an HTTP profiler application. They believe that allowing the LTM device to compress traffic to the client will improve performance. The client can utilize GZIP or deflate compression algorithms.
An LTM Specialist must implement the compression.
The LTM Specialist has completed the following actions:
1. Create the relevant profile.
2. Apply the relevant profile to the virtual server (VS).
After applying the relevant profile, the LTM device is failing to compress the traffic. Instead, the traffic is being served with an error.
What is the problem?

Question52: A virtual server for a set of web services is constructed on an LTM device. The LTM Specialist has created an iRule and applied this iRule to the virtual server:
when HTTP_REQUEST {
switch [HTTP::uri] {
"/ws1/ws.jsp" {
log local0. "[HTTP::uri]-Redirected to JSP Pool"
pool JSP
}
default { log local0. "[HTTP::uri]-Redirected to Non-JSP Pool"
pool NonJSP
} } } However, the iRule is NOT behaving as expected. Below is a snapshot of the log: /WS1/ws.jsp-Redirected to JSP Pool /WS1/ws.jsp-Redirected to JSP Pool /WS1/ws.jsp-Redirected to JSP Pool /WS1/WS.jsp-Redirected to Non-JSP Pool /ws1/WS.jsp-Redirected to Non-JSP Pool /WS1/ws.jsp-Redirected to JSP Pool /ws1/ws.jsp-Redirected to Non-JSP Pool
What should the LTM Specialist do to resolve this?

Question53: -- Exhibit -

-- Exhibit -
Refer to the exhibit.
An LTM Specialist is investigating reports that users are unable to perform some commands through an FTP virtual server. The LTM Specialist performs a capture on the server side of the LTM device.
What is the issue with the application?

Question54: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist has created a virtual server to load balance traffic to a pool of HTTPS servers. The servers use client certificates for user authentication. The virtual server has clientssl, serverssl, and http profiles enabled. Clients are unable to connect to the application through the virtual server. Clients are able to connect to the application servers directly.
What is the root cause of the problem?

Question55: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A layer 2 nPath routing configuration has been deployed. A packet capture contains a client connection packet with the following properties:
Source IP: <Virtual Server>
Destination IP: <Client A>
At which two locations could the packet capture have been taken? (Choose two.)

Question56: -- Exhibit-

-- Exhibit -
Refer to the exhibit.
An LTM Specialist configures a virtual server that balances HTTP connections to a pool of three application servers. Approximately one out of every three connections to the virtual server fails.
Which two actions will resolve the problem? (Choose two.)

Question57: Users in a branch office are reporting a website is always slow. No other users are experiencing the problem. The LTM Specialist tests the website from the external VLAN along with testing the servers directly. All tests indicate normal behavior. The environment is a single HTTP virtual server on the external VLAN with a single pool containing three HTTP pool members on the internal VLAN.
Which two locations are most appropriate to collect additional protocol analyzer data? (Choose two.)

Question58: An LTM Specialist has configured a virtual server for www.example.com, load balancing connections to a pool of application servers that provide a shopping cart application. Cookie persistence is enabled on the virtual server. Users are able to connect to the application, but the user's shopping cart fails to update. A traffic capture shows the following:
Request: GET /cart/updatecart.php HTTP/1.1 Host: www.example.com Connection: keep-alive Cache-Control: max-age=0 User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_7_5) AppleWebKit/537.4 (KHTML, like
Gecko) Chrome/22.0.1229.94 Safari/537.4 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-EncodinG. gzip,deflate,sdch Accept-LanguagE. en-US,en;q=0.8 Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.3 CookiE. BIGipServerwebstore_pool=353636524.20480.0000
Response: HTTP/1.1 200 OK DatE. Wed, 24 Oct 2012 18:00:13 GMT Server: Apache/2.2.22 (Ubuntu) X-Powered-By: PHP/5.3.10-1ubuntu3.1 Set-CookiE. cartID=647A5EA6657828C69DB8188981CB5; path=/; domain=wb01.example.com Keep-AlivE. timeout=5, max=100 Connection: Keep-Alive Content-TypE. text/html
No changes can be made to the application.
What should the LTM Specialist do to resolve the problem?

Question59: An LTM Specialist is troubleshooting a problem on an eCommerce website. The user browses the online store using port 80, adding items to the shopping cart. The user then clicks the "Checkout" button on the site, which redirects the user to port 443 for the checkout process. Suddenly, the user's shopping cart is shown as empty.
The shopping cart data is stored in memory on the server, and the default source address persistence profile is used on both virtual servers.
How should the LTM Specialist resolve this issue?

Question60: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
Which two items can be consolidated to simplify the LTM configuration? (Choose two.)

Question61: The LTM device is configured to provide load balancing to a set of web servers that implement access control lists (ACL) based on the source IP address of the client. The ACL is at the network level and the web server is configured to send a TCP reset back to the client if it is NOT permitted to connect.
The virtual server is configured with the default OneConnect profile.
The ACL is defined on the web server as:
Permit: 192.168.136.0/24
Deny: 192.168.116.0/24
The packet capture is taken of two individual client flows to a virtual server with IP address
192.168.136.100.
Client A - Src IP 192.168.136.1 - Virtual Server 192.168.136.100:
Clientside:
09:35:11.073623 IP 192.168.136.1.55684 > 192.168.136.100.80: S 869998901:869998901(0) win 8192
<mss 1460,nop,wscale 2,nop,nop,sackOK>
09:35:11.073931 IP 192.168.136.100.80 > 192.168.136.1.55684: S 2273668949:2273668949(0) ack
869998902 win 4380 <mss 1460,nop,wscale 0,sackOK,eol>
09:35:11.074928 IP 192.168.136.1.55684 > 192.168.136.100.80: . ack 1 win 16425
09:35:11.080936 IP 192.168.136.1.55684 > 192.168.136.100.80: P 1:299(298) ack 1 win 16425
09:35:11.081029 IP 192.168.136.100.80 > 192.168.136.1.55684: . ack 299 win 4678 Serverside:
09:35:11.081022 IP 192.168.136.1.55684 > 192.168.116.128.80: S 685865802:685865802(0) win 4380
<mss 1460,nop,wscale 0,sackOK,eol>
09:35:11.081928 IP 192.168.116.128.80 > 192.168.136.1.55684: S 4193259095:4193259095(0) ack
685865803 win 5840 <mss 1460,nop,nop,sackOK,nop,wscale 6>
09:35:11.081943 IP 192.168.136.1.55684 > 192.168.116.128.80: . ack 1 win 4380
09:35:11.081955 IP 192.168.136.1.55684 > 192.168.116.128.80: P 1:299(298) ack 1 win 4380
09:35:11.083765 IP 192.168.116.128.80 > 192.168.136.1.55684: . ack 299 win 108 Client B - Src IP 192.168.116.1 - Virtual Server 192.168.136.100:
Clientside:
09:36:11.244040 IP 192.168.116.1.55769 > 192.168.136.100.80: S 3320618938:3320618938(0) win 8192
<mss 1460,nop,wscale 2,nop,nop,sackOK>
09:36:11.244152 IP 192.168.136.100.80 > 192.168.116.1.55769: S 3878120666:3878120666(0) ack
3320618939 win 4380 <mss 1460,nop,wscale 0,sackOK,eol>
09:36:11.244839 IP 192.168.116.1.55769 > 192.168.136.100.80: . ack 1 win 16425
09:36:11.245830 IP 192.168.116.1.55769 > 192.168.136.100.80: P 1:299(298) ack 1 win 16425
09:36:11.245922 IP 192.168.136.100.80 > 192.168.116.1.55769: . ack 299 win 4678 Serverside:
09:36:11.245940 IP 192.168.136.1.55684 > 192.168.116.128.80: P 599:897(298) ack 4525 win 8904
09:36:11.247847 IP 192.168.116.128.80 > 192.168.136.1.55684: P 4525:5001(476) ack 897 win 142 Why was the second client flow permitted by the web server?

Question62: An LTM Specialist is troubleshooting an issue with a new virtual server. When connecting through the virtual server, clients receive the message "The connection was reset" in the browser, although connections directly to the pool member show the application is functioning correctly.
ltm pool srv1_https_pool {
members {
192.168.2.1:https{
address 192.168.2.1
}
}
}
ltm virtual https_example_vs {
destination 192.168.1.155:https
ip-protocol tcp
mask 255.255.255.255
pool srv1_https_pool
profiles {
http { }
tcp { }
}
snat automap
vlans-disabled
}
How should the LTM Specialist resolve this issue?

Question63: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist has created a virtual server to balance connections to a pool of application servers and offload SSL decryption. Clients connect to the application at https://www.example.com/. The virtual server is configured with a clientssl profile but no serverssl profile. The application servers are listening on ports
80 and 443. Users are unable to connect to the application through the virtual server but are able to connect directly to the application server.
What is the root cause of the error?

Question64: The active LTM device in a high-availability (HA) pair performs a failover at the same time the network team reports an outage of a switch on the network.
Which two items could have caused the failover event? (Choose two.)

Question65: An LTM Specialist is setting up a monitor for an HTTP 1.1 server. The response to a GET / is:
HTTP/1.1 302 Moved Temporarily
Location: http://www.example.com/new/location.html
Which send string settings should the LTM Specialist use to force a proper response?

Question66: -- Exhibit-

-- Exhibit -Refer to the exhibit. An LTM Specialist has created a virtual server to balance connections to a pool of
application servers and offload SSL decryption. Clients connect to the application at https://www.example.com/. The virtual server is configured with a clientssl profile but no serverssl profile. The application servers are listening on ports 80 and 443. Users are unable to connect to the application through the virtual server but are able to connect directly to the application server.
What is the root cause of the error?

Question67: A failover event is recorded in the following log messages:
Jan 01 00:56:56 BIG-IP notice mcpd[5318]: 01070727:5: Pool /Common/my-pool member / Common/10.0.0.10:80 monitor status down.
Jan 01 00:56:56 BIG-IP notice sod[5855]: 010c0045:5: Leaving active, group score 10 peer group score 20.
Jan 01 00:56:56 BIG-IP notice sod[5855]: 010c0052:5: Standby for traffic group /Common/traffic-group-1.
Jan 01 00:56:56 BIG-IP notice sod[5855]: 010c0018:5: Standby
Jan 01 00:57:06 BIG-IP notice logger: /usr/bin/tmipsecd --tmmcount 4 ==> /usr/bin/bigstart stop racoon What is the cause of the failover?

Question68: An LTM Specialist sees these entries in /var/log/ltm:
Oct 25 03:34:31 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443
Oct 25 03:34:32 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443
Oct 25 03:34:32 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443
Oct 25 03:34:32 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443
Oct 25 03:34:32 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443
Oct 25 03:34:33 tmm warning tmm[7150]: 01260017:4: Connection attempt to insecure SSL server (see RFC5746) aborteD. 172.16.20.1:443
Assume 172.16.20.0/24 is attached to the VLAN "internal."
What should the LTM Specialist use to troubleshoot this issue?

Question69: An LTM Specialist configures the following iRule on an LTM device:
when HTTP_REQUEST {
if {[string tolower [HTTP::uri]] contains "/URI1/" } {
pool Pool1
} elseif {[string tolower [HTTP::uri]] contains "/URI2/" } { pool Pool2 } elseif {[string tolower [HTTP::uri]] contains "/URI3/" } { pool Pool3 } else { pool Pool4}
}
Given the following request: http://www.example.comURI1/index.html?fu=bar&pass=1234
Which pool will be selected by the iRule?

Question70: An LTM Specialist is creating a custom EAV monitor.
In which directory should the LTM Specialist upload the script?

Question71: An LTM Specialist must perform a hot fix installation from the command line.
What is the correct procedure to ensure that the installation is successful?

Question72: Users are experiencing low throughput when downloading large files over a high-speed WAN connection. Extensive packet loss was found to be an issue but CANNOT be eliminated.
Which two TCP profile settings should be modified to compensate for the packet loss in the network? (Choose two.)

Question73: These log entries can have different root causes:
Jun 28 05:01:21 LTM_A notice mcpd[27545]: 0107143a:5: CMI reconnect timer: enabled
Jun 28 05:01:21 LTM_A notice mcpd[27545]: 01071431:5: Attempting to connect to CMI peer 1.1.1.2 port 6699
Jun 28 05:01:21 LTM_A notice mcpd[27545]: 01071432:5: CMI peer connection established to 1.1.1.2 port 6699
Jun 28 05:01:26 LTM_A notice mcpd[27545]: 0107143a:5: CMI reconnect timer: disabled, all peers are connected
Which two commands should be used to obtain additional information on these entries? (Choose two.)

Question74: -- Exhibit -


-- Exhibit --
Refer to the exhibits.
Every monitor has the same Send String, Recv String, and an Alias of *:*. The LTM Specialist simplifies the configuration to minimize the number of monitors.
How many unique monitors remain?

Question75: An LTM Specialist configures an HTTP monitor as follows:
ltm monitor http stats_http_monitor { defaults-from http destination *:*
interval 5
recv "Health check: OK"
send "GET /stats/stats.html HTTP/1.1\\r\\nHost: www.example.com\\r\\nAccept-EncodinG. gzip,
deflate\\r\\nConnection: close\\r\\n\\r\\n"
time-until-up 0
timeout 16
}
The monitor is marking all nodes as down. A trace of the HTTP conversation shows the following:
GET /stats/stats.html HTTP/1.1
Host: www.example.com
Accept-EncodinG. gzip, deflate
Connection: close
HTTP/1.1 401 Authorization Required
DatE. Tue, 23 Oct 2012 19:38:56 GMT
Server: Apache/2.2.15 (Unix)
WWW-AuthenticatE. Basic realm="Please enter your credentials"
Content-LengtH. 480
Connection: close
Content-TypE. text/html; charset=iso-8859-1
Which action will resolve the problem?

Question76: An LTM Specialist has a single HTTPS virtual server doing SSL termination. No server SSL profile is defined. The pool members are on the internal VLAN answering on HTTP port 80. Users with certain browsers are experiencing issues.
Which two locations are most appropriate to gather packets needed to determine the SSL issue? (Choose two.)

Question77: Which iRule statement demotes a virtual server from CMP?

Question78: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A pair of LTM devices are deployed in a high-availability (HA) pair as the diagram shows. After inserting a new rule on the firewalls, the LTM devices become Standby. The rule drops all outbound sessions to the Internet. Only inbound connections are allowed from the Internet. There are no other changes to the environment.
What triggered the LTM device failover?

Question79: Which three HTTP headers allow an application server to determine the client's language compatibility, browser, operating system type, and compression compatibility? (Choose three.)

Question80: An LTM device has been configured to log the reasons for generating TCP RST packets.
The following log entry occurs:
"01230140:3: RST sent from 192.168.1.100:80 to 192.168.1.124:39272, [0x112d82a:1721] {peer} TCP RST from remote system." Which condition will trigger this log entry?

Question81: -- Exhibit- -- Exhibit -

Refer to the exhibit.
A server administrator notices that one server is intermittently NOT being sent any HTTP requests. The server logs display no issues. The LTM Specialist notices log entries stating the node (172.16.20.1) status cycling between down and up. The pool associated with the virtual server (10.10.1.100) has a custom HTTP monitor applied.
Which tcpdump filter will help trace the monitor?

Question82: Users in a branch office are reporting a website is always slow. No other users are experiencing the problem.
The LTM Specialist tests the website from the external VLAN along with testing the servers directly. All tests indicate normal behavior. The environment is a single HTTP virtual server on the external VLAN with a single pool containing three HTTP pool members on the internal VLAN.
Which two locations are most appropriate to collect additional protocol analyzer data? (Choose two.)

Question83: The LTM Specialist is in the process of creating a USB boot drive for the purpose of restoring the BIG-IP software to an LTM device. A separate LTM device has been selected for the purpose of creating the USB boot drive. The BIG-IP software ISO has already been uploaded and mounted on the separate LTM device.
Which command should the LTM Specialist use to trigger the LTM device to install the BIG-IP software to the USB boot drive?

Question84: Which command line interface command will check if the BIG-IP platform contains a packet velocity ASIC (PVA)?

Question85: An LTM Specialist is receiving reports from customers about multiple applications failing to work properly. The LTM Specialist looks at the services running and notices that the bigd process has NOT started.
How are monitored LTM device objects marked when the bigd process is stopped?

Question86: Which two alerting capabilities can be enabled from within an application visibility reporting (AVR) analytics profile? (Choose two.)

Question87: What is the correct command to reset an LTM device to its default settings?

Question88: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A client attempts to connect from a Google Chrome browser to a virtual server on a BIG-IP LTM. The virtual server is SSL Offloaded. When the client connects, the client receives an SSL error. The client receives the same errors when trying Mozilla Firefox and Internet Explorer browsers.
The LTM Specialist does an ssldump on the virtual server and receives the results as per the exhibit.
How should this be resolved?

Question89: -- Exhibit-

-- Exhibit -
Refer to the exhibit.
An LTM Specialist configures a virtual server to load balance to a pool of FTP servers. File transfers are failing. The virtual server is configured as follows:
ltm virtual ftp_vs { destination 10.10.1.103:ftp ip-protocol tcp mask 255.255.255.255 pool ftp_pool profiles { tcp { } } vlans-disabled }
Which change will resolve the problem?

Question90: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is working on an LTM 11.0.0 installation and has identified a security vulnerability as shown in the exhibit. The LTM Specialist is tasked with applying the latest available hotfix to resolve the problem.
Which procedure resolves the problem?

Question91: An LTM Specialist is troubleshooting virtual server 10.0.0.1:443 residing on VLAN vlan301. The web application is accessed via www.example.com. The LTM Specialist wants to save a packet capture with complete decrypted payload for external analysis.
Which command should the LTM Specialist execute on the LTM device command line interface?

Question92: An LTM Specialist has set up a custom SNMP alert.
Which command line tool should the LTM Specialist use to test the alert?

Question93: -- Exhibit -


-- Exhibit --
Refer to the exhibits.
An LTM Specialist uses the information in the logs to determine the cause of a failover event in a high- availability (HA) pair.
What caused the failover?

Question94: An LTM Specialist notices the following error on the stdout console:
mcpd[2395]: 01070608:0: License is not operational(expired or digital signature does not match contents) Which command should be executed to verify the LTM device license?

Question95: -- Exhibit- -- Exhibit -

Refer to the exhibit.
A user is unable to access a secure application via a virtual server.
What is the cause of the issue?

Question96: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist has uploaded a qkview to F5 iHealth.
Within the GUI, what is the correct procedure to comply with the recommendation shown in the
exhibit?

Question97: A client (10.10.1.30) connecting to an HTTPS virtual server (10.10.1.100) with a clientssl profile is getting an SSL error.
Which options will trace this issue?

Question98: Which two items can be logged by the Application Visibility Reporting analytics profile? (Choose two.)

Question99: An LTM Specialist has been asked to configure a virtual server to distribute connections between a pool of two application servers with addresses 172.16.20.1 and 172.16.20.2. The application servers are listening on TCP ports 80 and 443. The application administrators have asked that clients be directed to the same node for both HTTP and HTTPS requests within the same session.
Virtual servers vs_http and vs_https have been created, listening on 1.2.3.100:80 and 1.2.3.100:443, respectively.
Which configuration option will result in the desired behavior?

Question100: An LTM Specialist connects to an LTM device via the serial console cable and receives unreadable output.
The LTM Specialist is using the appropriate cable and connecting it to the correct serial port.
Which command should the LTM Specialist run through ssh to verify that the baud rate settings for the serial port are correct on the LTM device?

Question101: -- Exhibit -

-- Exhibit -Refer to the exhibit.
An LTM Specialist is reviewing the virtual server configuration on an LTM device.
Which two actions should the LTM Specialist perform to minimize the virtual server configuration? (Choose two.)

Question102: - Exhibit --

-- Exhibit --
Refer to the exhibit.
A company uses a complex piece of client software that connects to one or more virtual servers hosted on an LTM device. The client software is experiencing issues. An LTM Specialist must determine the cause of the problem.
The LTM Specialist has the tcpdump extract and knows the client source IP is 168.210.232.5.
Assuming no wildcard virtual servers, how many distinct virtual servers does the client connect to on the LTM device?

Question103: Given this as the first packet displayed of an ssldump:
2 2 1296947622.6313 (0.0001) S>CV3.1(74) Handshake
ServerHello
Version 3.1
random[32]
19 21 d7 55 c1 14 65 63 54 23 62 b7 c4 30 a2 f0
b8 c4 20 06 86 ed 9c 1f 9e 46 0f 42 79 45 8a 29
session_id[32]
c4 44 ea 86 e2 ba f5 40 4b 44 b4 c2 3a d8 b4 ad
4c dc 13 0d 6c 48 f2 70 19 c3 05 f4 06 e5 ab a9
cipherSuite TLS_RSA_WITH_RC4_128_SHA
compressionMethod NULL
In reviewing the rest of the ssldump, the application data is NOT being decrypted.
Why is ssldump failing to decrypt the application data?

Question104: An LTM Specialist is setting up a monitor for an HTTP 1.1 server. The response to a GET / is:
HTTP/1.1 302 Moved Temporarily
Location: http://www.example.com/new/location.html
Which send string settings should the LTM Specialist use to force a proper response?

Question105: An LTM Specialist is working with an LTM device configured with 10 virtual servers on the same domain with a different key/cert pair per virtual. For examplE. www.example.com; ftp.example.com; ssh.example.com; ftps.example.com.
What should the LTM Specialist do to reduce the number of objects on the LTM device?

Question106: Which iRule will instruct the client's browser to avoid caching HTML server responses?

Question107: A stand-alone LTM device is to be paired with a second LTM device to create an active/standby pair. The current stand-alone LTM device is in production and has several VLANs with floating IP addresses configured. The appropriate device service clustering (DSC) configurations are in place on both LTM devices.
Which two non-specific DSC settings should the LTM Specialist configure on the second LTM device to ensure no errors are reported when attempting to synchronize for the first time? (Choose two.)

Question108: -- Exhibit-

-- Exhibit --
Refer to the exhibit.
A user is unable to access an application.
What is the root cause of the problem?

Question109: Windows PC clients are connecting to a virtual server over a high-speed, low-latency network with no packet loss.
Which built-in client-side TCP profile provides the highest throughput for HTTP downloads?

Question110: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A user is unable to access an application.
What is the root cause of the problem?

Question111: An LTM Specialist configures an HTTP monitor as follows:
ltm monitor http stats_http_monitor {
defaults-from http
destination *:*
interval 5
recv "Health check: OK"
send "GET /stats/stats.html HTTP/1.1\\r\\nHost: www.example.com\\r\\nAccept-
EncodinG.gzip, deflate\\r\\nConnection: close\\r\\n\\r\\n"
time-until-up 0 timeout 16 }
The monitor is marking all nodes as down. A trace of the HTTP conversation shows the following:
GET /stats/stats.html HTTP/1.1 Host: www.example.com Accept-EncodinG.gzip, deflate Connection: close
HTTP/1.1 401 Authorization Required DatE.Tue, 23 Oct 2012 19:38:56 GMT Server: Apache/2.2.15 (Unix) WWW-AuthenticatE.Basic realm="Please enter your credentials" Content-LengtH.480 Connection: close Content-TypE.text/html; charset=iso-8859-1
Which action will resolve the problem?

Question112: -- Exhibit -

-- Exhibit -
Refer to the exhibit.
An LTM Specialist is troubleshooting an issue with SSL and is receiving the error shown when connecting to the virtual server. When connecting directly to the pool member, clients do NOT receive this message, and the application functions correctly. The LTM Specialist exports the appropriate certificate and key from the pool member and imports them into the LTM device. The LTM Specialist then creates the Client SSL profile and associates it with the virtual server.
What is the issue?

Question113: An LTM Specialist is creating a custom EAV monitor.
In which directory should the LTM Specialist upload the script?

Question114: A client is attempting to log in to a web application that requires authentication. The following HTTP headers are sent by the client:
GET /owa/ HTTP/1.1 Authorization: Basic dXNlcm5hbWU6cGFzc3dvcmQ= User-Agent: curl/7.26.0 Host: 10.0.0.14 Accept: */* Accept-EncodinG. gzip,deflate
The web server is responding with the following HTTP headers:
HTTP/1.1 401 Unauthorized Content-TypE. text/html Server: Microsoft-IIS/7.5
WWW-AuthenticatE. NTLM
DatE. Wed, 16 Aug 1977 19:12:31 GMT
Content-LengtH. 1293
The client has checked the login credentials and believes the correct details are being entered.
What is the reason the destination web server is sending an HTTP 401 response?

Question115: An LTM Specialist loads a UCS file generated on a different LTM device and receives the following error message:
"mcpd[2395]: 01070608:0: License is not operational (expired or digital signature does not match contents)"
Which command should the LTM Specialist use to prevent the error?

Question116: An active/standby pair of LTM devices deployed with network failover are working as desired. After external personnel perform maintenance on the network, the LTM devices are active/active rather than active/standby.
No changes were made on the LTM devices during the network maintenance.
Which two actions would help determine the cause of the malfunction? (Choose two.)

Question117: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A client attempts to connect from a Google Chrome browser to a virtual server on a BIG-IP LTM. The virtual server is SSL Offloaded. When the client connects, the client receives an SSL error. After trying Mozilla Firefox and Internet Explorer browsers, the client still receives the same errors.
The LTM Specialist does an ssldump on the virtual server and receives the results as per the exhibit.
What is the problem?

Question118: An LTM Specialist is setting up a monitor for an HTTP 1.1 server. The response to a GET / is:
HTTP/1.1 302 Moved Temporarily
Location: http://www.example.com/new/location.html
Which send string settings should the LTM Specialist use to force a proper response?

Question119: An HA pair of LTM devices configured in Active-Standby mode stops responding to traffic and causes an outage. The Active device becomes Standby, but the partner device stays in Standby mode instead of taking over as Active. A reboot and restart of the services brings the LTM device to Active mode for a short time, but then it goes into Standby mode again.
Which two configuration components caused this condition? (Choose two.)

Question120: An LTM device is serving an FTP virtual server that has three pool members. The FTP pool members are monitored via TCP port 21. Customers are reporting that they are able to log in, but are sometimes unable to upload files to the server.
Which monitor should the LTM Specialist configure to verify that the servers can handle file uploads?

Question121: -- Exhibit-

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is investigating intermittent page load issues being reported by users.
What should the LTM Specialist do to resolve the issue?

Question122: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A company uses a complex piece of client software that connects to one or more virtual servers (VS) hosted on an LTM device. The client software is experiencing issues. An LTM Specialist is tasked with finding the cause of the problem.
The LTM Specialist has the tcpdump extract and knows the client software has at least one connection to a VS on port 1990. However, when a tcpdump runs on the internal VLAN, there is no record of port 1990 in the tcpdump.
Why is there no record of port 1990 in the tcpdump?

Question123: An HTTP 1.1 application utilizes chunking.
Which header should be used to notify the client's browser that there are additional HTTP headers at the end of the message?

Question124: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is investigating intermittent page load issues being reported by users.
What should the LTM Specialist do to resolve the issue?

Question125: An F5 LTM Specialist needs to perform an LTM device configuration backup prior to RMA swap.
Which command should be executed on the command line interface to create a backup?

Question126: -- Exhibit -

-- Exhibit -Refer to the exhibit.
The decoded TCPDump capture is a trace of a failing health monitor. The health monitor is sending the string shown in the capture; however, the server response is NOT as expected. The receive string is set to 'SERVER IS UP'.
What is the solution?

Question127: An LTM Specialist defines a receive string in the HTTP monitor and then assigns it to the HTTP pool. The monitor has an interval of 5 seconds and a timeout of 16 seconds.
If the receive string is NOT seen in the the HTTP payload after 20 seconds, how does the LTM device mark the monitor status?

Question128: An LTM Specialist is troubleshooting an HTTP monitor. The pool member is accessible directly through a browser, but the HTTP monitor is marking the pool member as down.
GET / HTTP/1.1
HTTP/1.1 400 Bad Request DatE.Tue, 23 Oct 2012 21:39:07 GTM Server: Apache/2.2.22 (FreeBSD) PHP/5.4.4 mod_ssl/2.2.22 OpenSSL/0.9.8q DAV/2 Content-LengtH.226
Connection: close
Content-TypE.text/html; charset=iso-8859-1
How should the LTM Specialist resolve this issue?

Question129: What is the effect of an iRule error such as referencing an undefined variable?

Question130: An LTM Specialist configures the following iRule on an LTM device:
when HTTP_REQUEST { if {[string tolower [HTTP::uri]] contains "/URI1/" } { pool Pool1 } elseif {[string tolower [HTTP::uri]] contains "/URI2/" } { pool Pool2 } elseif {[string tolower [HTTP::uri]] contains "/URI3/" } { pool Pool3 } else { pool Pool4} }
Given the following request: http://www.example.comURI1/index.html?fu=bar&pass=1234
Which pool will be selected by the iRule?

Question131: There are three servers in the pool: 172.16.20.1, 172.16.20.2, and 172.16.20.3, with the virtual IP address
10.0.20.88.
A user CANNOT connect to an HTTP application. To understand the problem and find a solution, the LTM Specialist runs two concurrent traces on the LTM device, with the following results:
Trace on client side:
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on 0.0, link-type EN10MB (Ethernet), capture size 96 bytes
22:22:07.423759 IP 172.16.20.100.53875 > 10.0.20.88.80: S 998346084:998346084(0) win 5840 <mss
1460,sackOK,timestamp 67942058 0,nop,wscale 4>
22:22:07.424056 IP 10.0.20.88.80 > 172.16.20.100.53875: S 4671780:4671780(0) ack 998346085 win
4380 <mss 1460,nop,wscale 0,nop,nop,timestamp 2392362490 67942058,sackOK,eol>
22:22:07.424776 IP 172.16.20.100.53875 > 10.0.20.88.80: . ack 1 win 365 <nop,nop,timestamp 67942058
2392362490>
22:22:07.424790 IP 172.16.20.100.53875 > 10.0.20.88.80: P 1:149(148) ack 1 win 365
<nop,nop,timestamp 67942058 2392362490>
22:22:07.424891 IP 10.0.20.88.80 > 172.16.20.100.53875: . ack 149 win 4528 <nop,nop,timestamp
2392362491 67942058>
22:22:12.024850 IP 10.0.20.88.80 > 172.16.20.100.53875: R 1:1(0) ack 149 win 4528
6 packets captured
6 packets received by filter
0 packets dropped by kernel
Trace on server side:
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on internal, link-type EN10MB (Ethernet), capture size 96 bytes
22:22:07.424881 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380 <mss
1460,nop,wscale 0,nop,nop,timestamp 2392362491 0,sackOK,eol>
22:22:08.424893 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380 <mss
1460,nop,wscale 0,nop,nop,timestamp 2392363491 0,sackOK,eol>
22:22:09.625082 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380 <mss
1460,nop,wscale 0,nop,nop,timestamp 2392364691 0,sackOK,eol>
22:22:10.825194 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380 <mss
1460,sackOK,eol>
4 packets captured
4 packets received by filter
0 packets dropped by kernel
What should the LTM Specialist do to solve the problem?

Question132: An LTM Specialist has configured a virtual server for www.example.com, load balancing connections to a pool of application servers that provide a shopping cart application. Cookie persistence is enabled on the virtual server. Users are able to connect to the application, but the user's shopping cart fails to update. A traffic capture shows the following:
Request: GET /cart/updatecart.php HTTP/1.1 Host: www.example.com Connection: keep-alive Cache-Control: max-age=0 User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_7_5) AppleWebKit/537.4 (KHTML,
like Gecko) Chrome/22.0.1229.94 Safari/537.4 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-EncodinG.gzip,deflate,sdch Accept-LanguagE.en-US,en;q=0.8 Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.3 CookiE.BIGipServerwebstore_pool=353636524.20480.0000
Response:
HTTP/1.1 200 OK
DatE.Wed, 24 Oct 2012 18:00:13 GMT
Server: Apache/2.2.22 (Ubuntu)
X-Powered-By: PHP/5.3.10-1ubuntu3.1
Set-CookiE.cartID=647A5EA6657828C69DB8188981CB5; path=/;
domain=wb01.example.com
Keep-AlivE.timeout=5, max=100
Connection: Keep-Alive
Content-TypE.text/html
No changes can be made to the application.
What should the LTM Specialist do to resolve the problem?

Question133: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
Which step should an LTM Specialist take next to finish upgrading to HD1.3?

Question134: -- Exhibit-

-- Exhibit -
Refer to the exhibits.
Users are able to access the application when connecting directly to the web server but are unsuccessful when connecting to the virtual server. Return traffic bypasses the LTM device using Layer 2 nPath routing.
Which configuration change resolves this problem?

Question135: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is reviewing the 'test' partition.
Which objects, in order, can be removed from the partition?

Question136: -- Exhibit-


-- Exhibit -
Refer to the exhibits.
When observing the AVR statistics for the HTTPS_VS, an LTM Specialist realizes that HTTP status codes are NOT being recorded.
How should the LTM Specialist modify the configuration to record the HTTP status codes?

Question137: -- Exhibit-

-- Exhibit -Refer to the exhibit.
A web application is configured to allow sessions to continue even after a user computer is shut down for the night. A new LTM device is configured to load balance the web application to several servers. The application owner reports that application users are logged out of the web application whenever their browser is restarted or computer is rebooted.
What is the problem?

Question138: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A pair of LTM devices is configured for HA.
What happens if the pool member server with IP address 10.0.0.4 becomes totally unresponsive to the active LTM device, but is still responsive to the standby LTM device?

Question139: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
Which URL should be reported to the server/application team as getting user-visible errors?

Question140: Which two subsystems could the LTM Specialist utilize to access an LTM device with lost management interface connectivity? (Choose two.)

Question141: An LTM Specialist is working with an LTM device configured with 10 virtual servers on the same domain with a different key/cert pair per virtual. For examplE.www.example.com; ftp.example.com; ssh.example.com; ftps.example.com.
What should the LTM Specialist do to reduce the number of objects on the LTM device?

Question142: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
A client attempts to connect from a Google Chrome browser to a virtual server on a BIG-IP LTM.
The virtual server is SSL Offloaded. When the client connects, the client receives an SSL error.
The client receives the same errors when trying Mozilla Firefox and Internet Explorer browsers. The LTM Specialist does an ssldump on the virtual server and receives the results as per the exhibit.
How should this be resolved?

Question143: A web developer has created a custom HTTP call to a backend application. The HTTP headers being sent by the HTTP call are:
GET / HTTP/1.1
User-Agent: MyCustomApp (v1.0)
Accept: text/html
Cache-Control: no-cache
Connection: keep-alive
CookiE. somecookie=1
The backend server is responding with the following:
HTTP/1.1 400 Bad Request
DatE. Wed, 20 Jul 2012 17:22:41 GMT
Connection: close
Why is the HTTP web server responding with a HTTP 400 Bad Request?

Question144: An LTM Specialist has configured a virtual server for www.example.com, load balancing connections to a pool of application servers that provide a shopping cart application. Cookie persistence is enabled on the virtual server. Users are able to connect to the application, but the user's shopping cart fails to update. A traffic capture shows the following:
Request:
GET /cart/updatecart.php HTTP/1.1
Host: www.example.com
Connection: keep-alive
Cache-Control: max-age=0
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_7_5) AppleWebKit/537.4 (KHTML, like Gecko) Chrome/22.0.1229.94 Safari/537.4 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-EncodinG. gzip,deflate,sdch Accept-LanguagE. en-US,en;q=0.8 Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.3 CookiE. BIGipServerwebstore_pool=353636524.20480.0000 Response:
HTTP/1.1 200 OK
DatE. Wed, 24 Oct 2012 18:00:13 GMT
Server: Apache/2.2.22 (Ubuntu)
X-Powered-By: PHP/5.3.10-1ubuntu3.1
Set-CookiE. cartID=647A5EA6657828C69DB8188981CB5; path=/; domain=wb01.example.com Keep-AlivE. timeout=5, max=100 Connection: Keep-Alive Content-TypE. text/html No changes can be made to the application.
What should the LTM Specialist do to resolve the problem?

Question145: -- Exhibit - -- Exhibit -

Refer to the exhibits.
Which two servers are missing two frequently used URLs? (Choose two.)

Question146: An LTM Specialist configured a virtual server to load balance a custom application. The application works when it is tested from within the firewall but it fails when tested externally. The pool member address is
192.168.200.10:80. A capture from an external client shows:
GET /index.jsp HTTP/1.1
Host: 207.206.201.100
User-Agent: Mozilla/5.0 (Windows NT 6.1; WOW64; rv:15.0) Gecko/20100101 Firefox/15.0.1 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Connection: keep-alive HTTP/1.1 302 Found DatE. Wed, 17 Oct 2012 23:09:55 GMT Server: Apache/2.2.15 (CentOS) Location: http://192.168.200.10/user/home.jsp Content-LengtH. 304 Connection: close What is the solution to this issue?

Question147: Which two items can be logged by the Application Visibility Reporting analytics profile? (Choose two.)

Question148: A device group is made up of four members: LTM-A, LTM-B, LTM-C, and LTM-D. An LTM Specialist makes a configuration change on LTM-B. Later, a different LTM Specialist notices a "changes pending" message on all devices. When logged into LTM-D, the LTM Specialist attempts to config-sync to the device group. The sync operation fails.
Why is the LTM Specialist on LTM-D unable to synchronize the configuration to the group?

Question149: -- Exhibit- -- Exhibit -

Refer to the exhibits.
Which two servers are missing two frequently used URLs? (Choose two.)

Question150: A OneConnect profile is applied to a virtual server. The LTM Specialist would like the client source IP addresses within the 10.10.10.0/25 range to reuse an existing server side connection.
Which OneConnect profile source mask should the LTM Specialist use?

Question151: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is reviewing the virtual server configuration on an LTM device.
Which two actions should the LTM Specialist perform to minimize the virtual server configuration? (Choose two.)

Question152: An LTM Specialist connects to an LTM device via the serial console cable and receives unreadable output. The LTM Specialist is using the appropriate cable and connecting it to the correct serial port.
Which command should the LTM Specialist run through ssh to verify that the baud rate settings for the serial port are correct on the LTM device?

Question153: -- Exhibit- -- Exhibit -

Refer to the exhibit.
An LTM Specialist is reviewing the 'test' partition.
Which objects, in order, can be removed from the partition?

Question154: -- Exhibit-

-- Exhibit --
Refer to the exhibit.
Which step should an LTM Specialist take to utilize AVR?

Question155: An LTM Specialist must perform a packet capture on a virtual server with an applied standard FastL4 profile. The virtual server 10.0.0.1:443 resides on vlan301.
Which steps should the LTM Specialist take to capture the data payload successfully while ensuring no other virtual servers are affected?

Question156: An LTM Specialist has just manually failed the active LTM device over to the standby LTM device. The LTM Specialist notices the newly active LTM device is NOT currently receiving traffic. The LTM Specialist verifies the newly active device is responding to ARP but still no traffic is hitting the virtual servers. The LTM Specialist also notices that the virtual servers eventually start responding.
What should be added to the configuration to resolve the problem?

Question157: The LTM device is configured for RADIUS authentication. Remote logins are failing and the LTM Specialist must verify the RADIUS configuration.
How should the LTM Specialist check the RADIUS server and shared secret configured on the LTM device?

Question158: -- Exhibit -

-- Exhibit -
Refer to the exhibit.
A user is unable to access a secure application via a virtual server.
What is the cause of the issue?

Question159: -- Exhibit - -- Exhibit -


Refer to the exhibits.
Users are able to access the application when connecting to the virtual server but are unsuccessful when connecting directly to the application servers. The LTM Specialist wants to allow direct access to the application servers.
Why are users unable to connect directly to the application servers?

Question160: An LTM Specialist needs to rewrite text within an HTML response from a web server. A client is sending the HTTP request below:
GET / HTTP/1.1
Host: www.f5.com
User-Agent: Mozilla/5.0 (Windows NT 6.1; WOW64; rv:16.0) Gecko/20100101 Firefox/16.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-LanguagE. en-US,en;q=0.5
Accept-EncodinG. gzip, deflate
Cache-Control: no-cache
Connection: keep-alive
CookiE. somecookie=1
Although a stream profile has been added to the virtual server, the content within the HTTP response is NOT being matched, and therefore NOT modified.
Which HTTP header should the LTM Specialist remove from the request to ensure the content can be matched and modified?

Question161: -- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is troubleshooting an HTTP monitor that is marking a pool member as down.
Connecting to the pool member directly through a browser shows the application is up and functioning correctly.
How should the send string be modified to correct this issue?

Question162: In which file would the LTM Specialist find virtual server configurations?

Question163: A client is attempting to log in to a web application that requires authentication. The following HTTP headers are sent by the client:
GET /owa/ HTTP/1.1 Authorization: Basic dXNlcm5hbWU6cGFzc3dvcmQ= User-Agent: curl/7.26.0 Host: 10.0.0.14 Accept: */* Accept-EncodinG.gzip,deflate
The web server is responding with the following HTTP headers:
HTTP/1.1 401 Unauthorized Content-TypE.text/html Server: Microsoft-IIS/7.5 WWW-AuthenticatE.NTLM DatE.Wed, 16 Aug 1977 19:12:31 GMT Content-LengtH.1293
The client has checked the login credentials and believes the correct details are being entered.
What is the reason the destination web server is sending an HTTP 401 response?

Question164: An LTM Specialist troubleshooting an issue looks at the following /var/log/ltm entries:
Oct 2 04:52:42 slot1/tmm7 crit tmm7[21734]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 05:37:16 slot1/tmm7 crit tmm7[21734]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 05:57:32 slot1/tmm2 crit tmm2[21729]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 06:30:03 slot1/tmm7 crit tmm7[21734]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 06:37:44 slot1/tmm2 crit tmm2[21729]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Oct 2 06:47:05 slot1/tmm5 crit tmm5[21732]: 01010201:2: Inet port exhaustion on 10.143.109.5 to
10.143.147.150:53 (proto 17)
Which configuration item should the LTM Specialist review to fix the issue?

Question165: -- Exhibit-

-- Exhibit -
Refer to the exhibit.
Which profile could be removed or changed on this virtual server to reduce CPU load on the LTM device without increasing server side bandwidth usage?

Question166: -- Exhibit-

-- Exhibit -
Refer to the exhibit.
An LTM Specialist has a virtual server set up on the LTM device as per the exhibit. The LTM Specialist receives reports of intermittent issues. Some clients are connecting fine while others are failing to connect.
The LTM Specialist does a tcpdump on the relevant interfaces, with the following results extracted:
What is causing the intermittent issues?
